Non Destructive Concrete Crack Depth Detector for Accurate Testing

M19294
Availability: In Stock
Explore this advanced non destructive testing equipment designed for precise concrete crack depth measurement, ensuring structural integrity.

$1,500.00

Qty

Features

- Accurate crack depth measurement up to 650mm
- Stores over 6000 data points with images
- Durable with IP55 weather protection
- Operates in temperatures from -10°C to +50°C
- Portable design powered by 6 batteries

This innovative non destructive testing equipment is designed to provide accurate measurements of concrete crack depths, ensuring the safety and integrity of structures.

Features

High precision crack depth measurement
Portable and easy to use
Large data storage capacity
Durable design with IP55 protection
Operates efficiently in varied temperatures

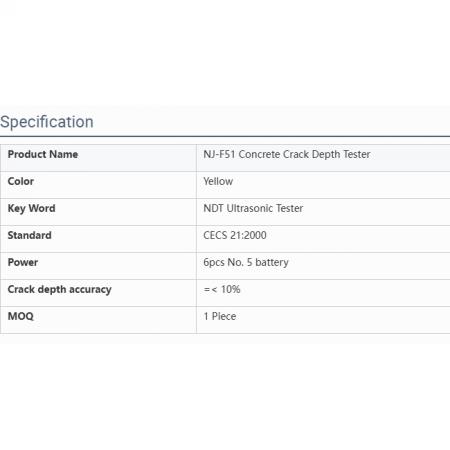

Specifications

Crack depth test range: ≤ 650mm
Data storage: over 6000 points
Screen resolution: 640x480
Power: 6pcs No. 5 batteries
Operating temperature: -10°C to +50°C
Main host dimension: 208mm x 168mm x 85mm

Applications

Building inspections
Structural engineering analysis
Bridge maintenance
Concrete quality assessment
Educational demonstrations

We take care of every step in-house — from product design to final packing. The Non Destructive Concrete Crack Depth Detector for Accurate Testing is one of our regular items, made with stable process control and consistent standards. M19294 is ready for order anytime.
